Side Entry Agitator Mixer

Engineering and Construction of Industrial Mixers

Industrial Agitators & Mixers » Side Entry Mixers

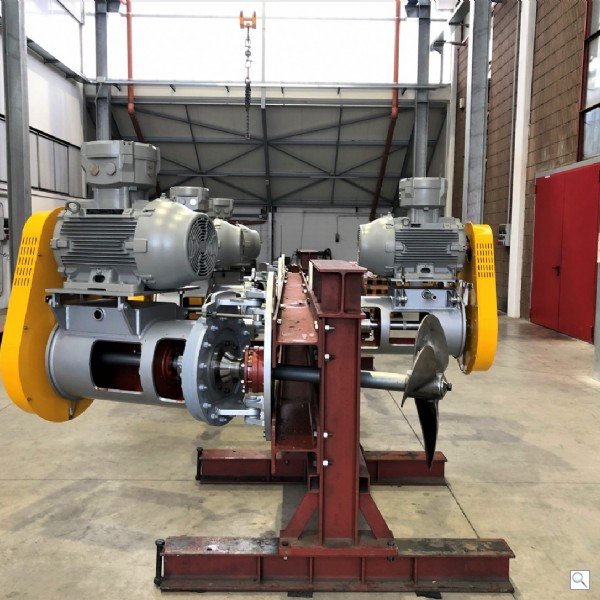

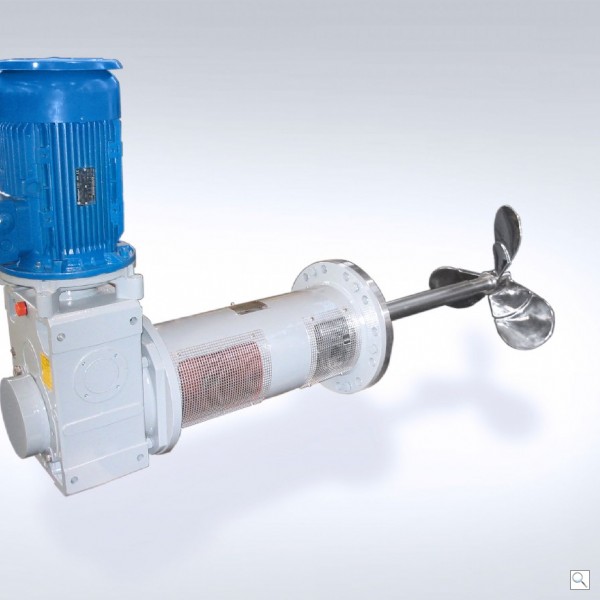

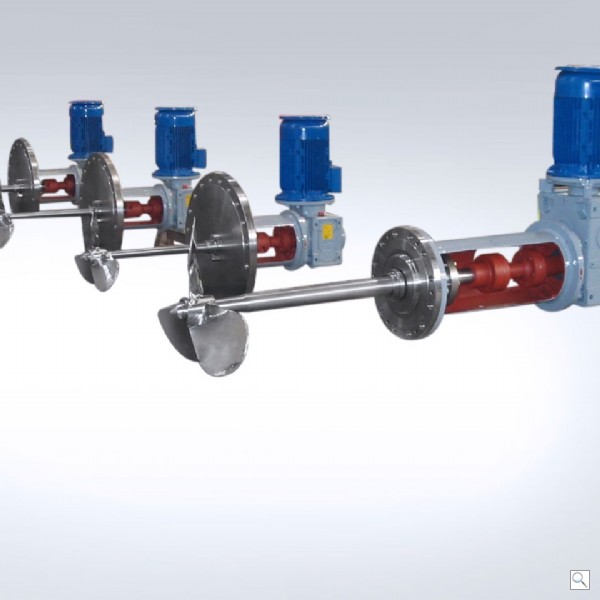

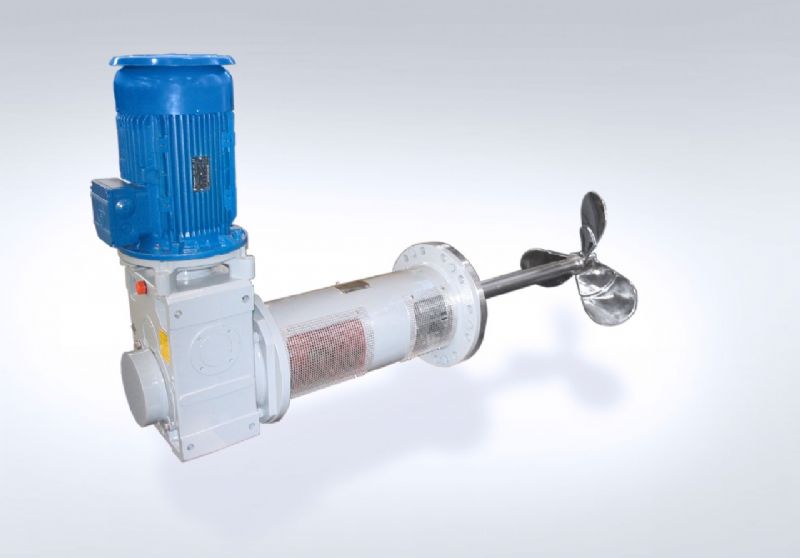

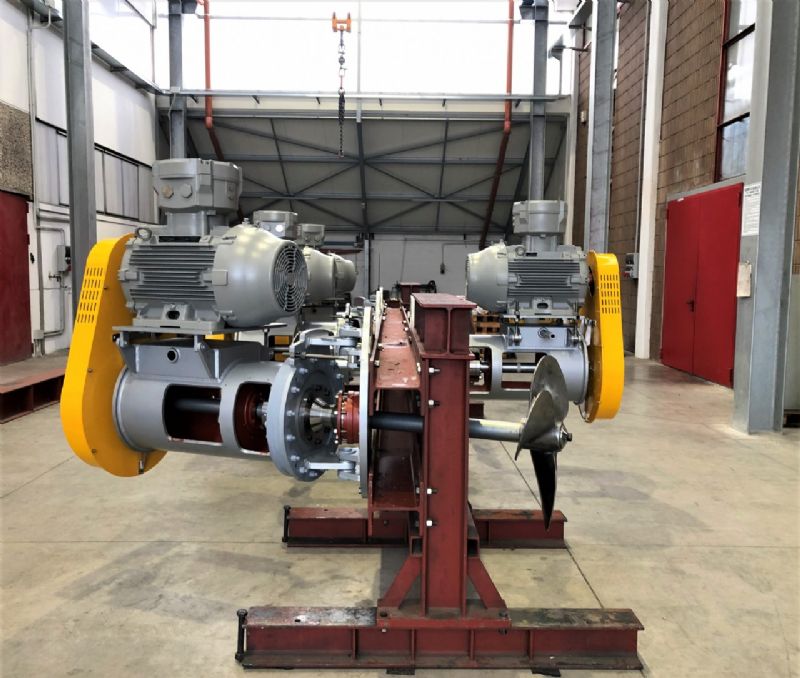

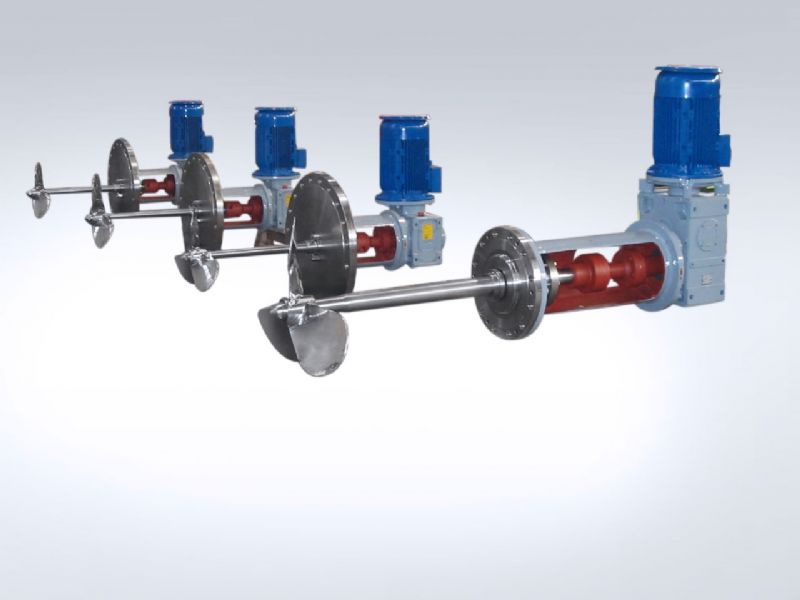

SIDE ENTRY MIXERS

Fixed and Swivel Side Entry Mixers with installed power up to 55 kW

  • From 220 to 411 rpm
  • Single or Double Mechanical Seal
  • Impeller diameter up to 850 mm manufactured in One-Piece component (Propeller and High Efficiency Turbine with 3 blades)
  • No misalignment with the shaft that is supported by antifriction bearings
  • Excellent Pumping Efficiency
  • Gear Driven unit design for pressure tanks up to 2 barg.
  • Suitable for low viscosity applications.
  • Seal cartridge removal on site with no special tools
  • Shut-Off device allows the replacement of the mechanical seal under full tank conditions. Mechanical Seals prevent product leakage and toxic emission during the mixer service under pressure. All side entry mixers are equipped with a standard tank shut-off device for seal maintenance with tank full of liquid.
  • Materials: Carbon Steel and Stainless Steel
  • ATEX Certification Available
  • Energy Saving
  • Easy Maintenance
