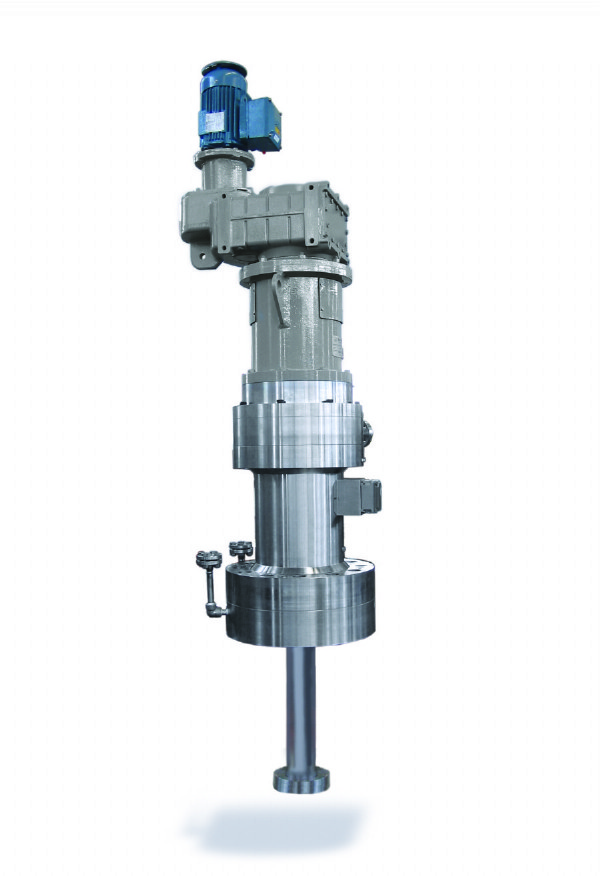

Top Entry Mixers with installed power up to 600 kW

Top Entry Mixers are the most common industrial agitators usually used on all process industries.

ZUCCHETTI Top Entry Industrial Mixers can be tailored to every customer request identifying  the proper mixing solution to optimize the process. Depending on the cases, ZUCCHETTI Top Entry Industrial Agitators can be equipped with Single, Double or Triple mechanical seal in order to define and ensure the highest level of quality and efficiency. Many types of standard and special impellers can be installed to achieve the desired process result.

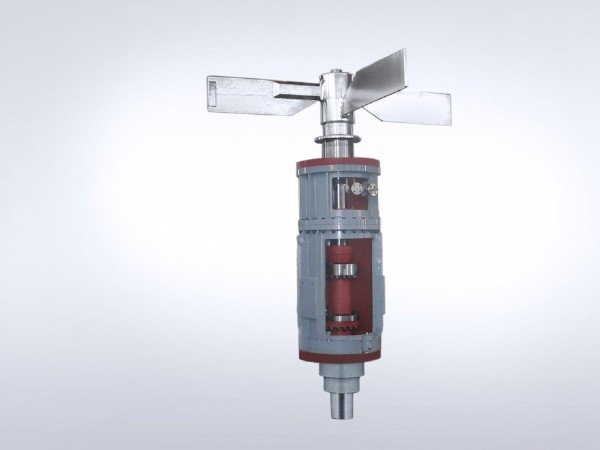

Magnetic Mixers with installed power up to 75 kW

ZUCCHETTI Magnetic Drive Mixers are suitable for process with high pressure and temperature where there is the presence of hazardous or corrosive working environment. We offer various types of top-mounted and bottom-mounted magnetic agitators. Our product are steadily used in the chemical, pharmaceutical and biotechnological industries. Important advantages of these agitators are their compact design, minimum maintenance requirements and high reliability.

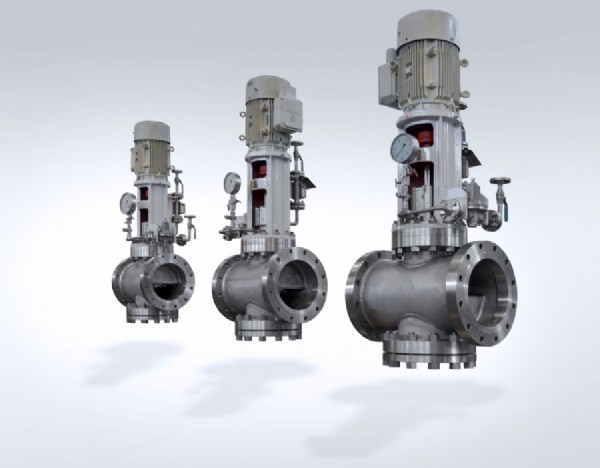

Dynamic In-Line Mixers with installed power up to 37 kW

ZUCCHETTI Dynamic In-Line Mixing Technology is based on Multi Stage Turbines to ensure high shear performance with product uniformity and Single or Double Mechanical Seals to guarantee the highest operating level for any degree of temperature and pressure.

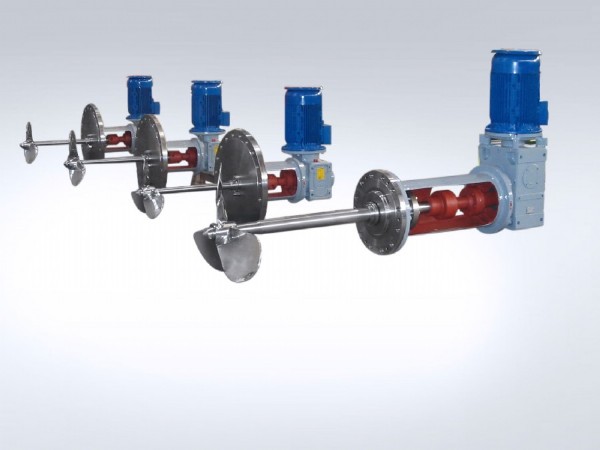

Fixed and Swivel Side Entry Mixers with installed power up to 55 kW

ZUCCHETTI Fixed Side Entry Mixers are usually installed at an angle of 10 degrees to the left of the tank axis. ZUCCHETTI Swivel Side Entry Mixers are equipped with a special device which allows the mixer angle of entry to be varied through 30 degrees either side of the tank centerline with 10 degrees increments. All ZUCCHETTI Side Entry Mixers incorporate a Shut-Off device to allow the shaft seal and bearings to be changed under full tank conditions.
